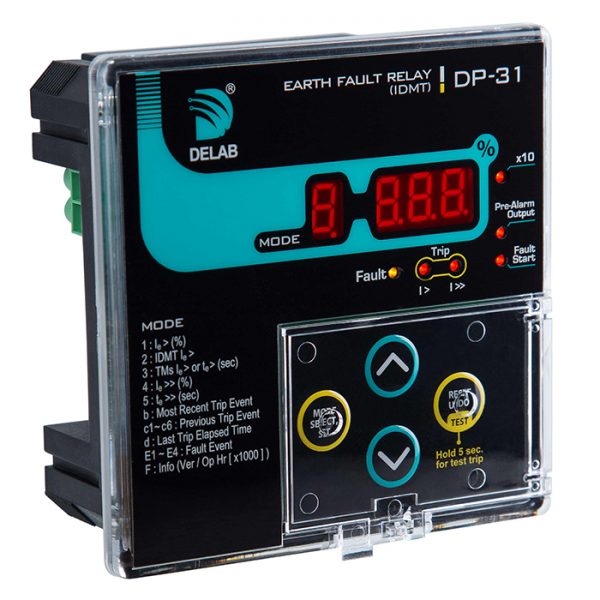

DP-31 (IDMT)

Earth Fault Relay

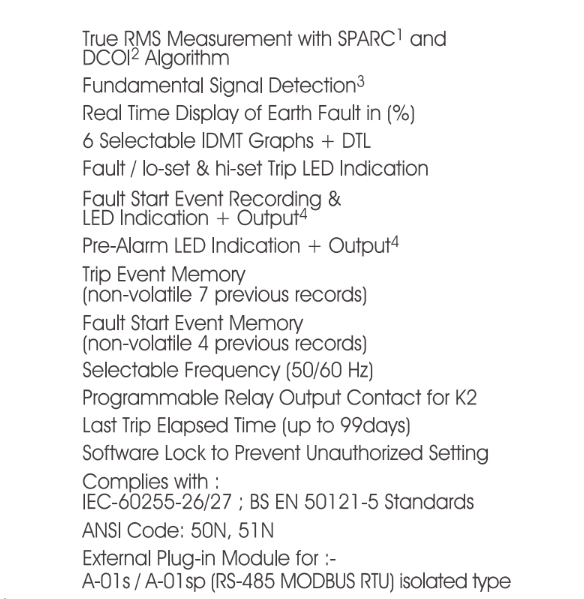

Features
  • True RMS Measurement with SPARC and DCOI Algorithm
  • Fundamental Signal Detection
  • Real Time Display of Earth Fault in (%)
  • 6 Selectable IDMT Graphs + DTL
  • Fault / lo-set & hi-set Trip LED Indication
  • Fault Start Event Recording & LED Indication + Output
  • Pre-Alarm LED Indication + Output
  • Trip Event Memory (non-volatile 7 previous records)
  • Fault Start Event Memory (non-volatile 4 previous records)
  • Selectable Frequency (50/60 Hz)
  • Programmable Relay Output Contact for K2
  • Last Trip Elapsed Time (up to 99days)
  • Software Lock to Prevent Unauthorized Setting
  • Complies with: IEC-60255-26/27; BS EN 50121-5 Standards
  • ANSI Code: 50N, 51N
  • External Plug-in Module for: A-01s / A-01sp (RS-485 MODBUS RTU) isolated type

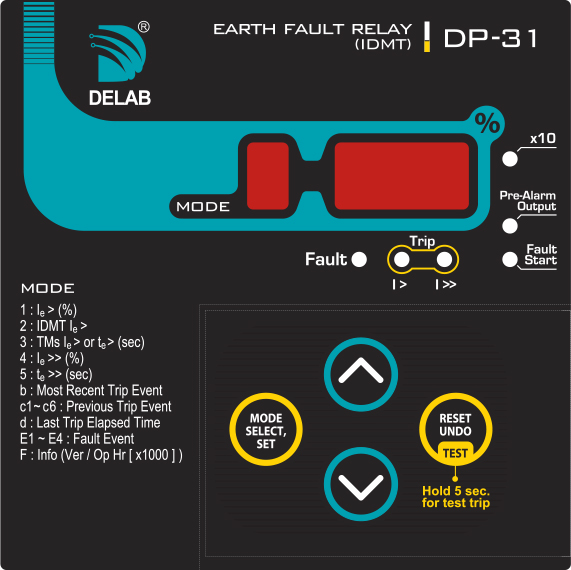

Front Panel

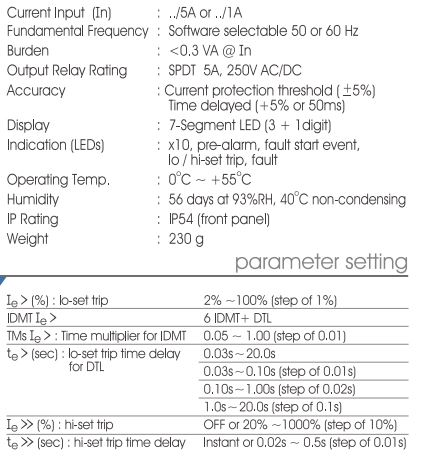

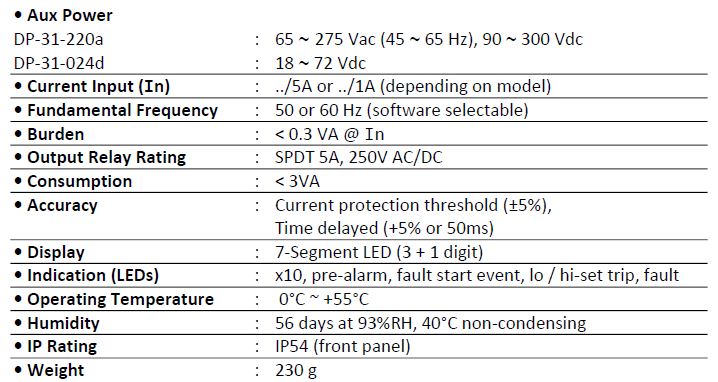

Tech Data

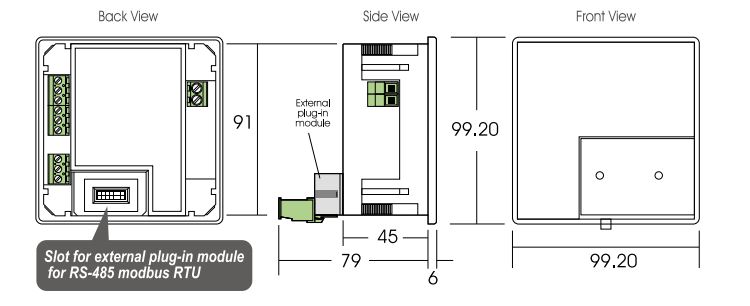

Dimension

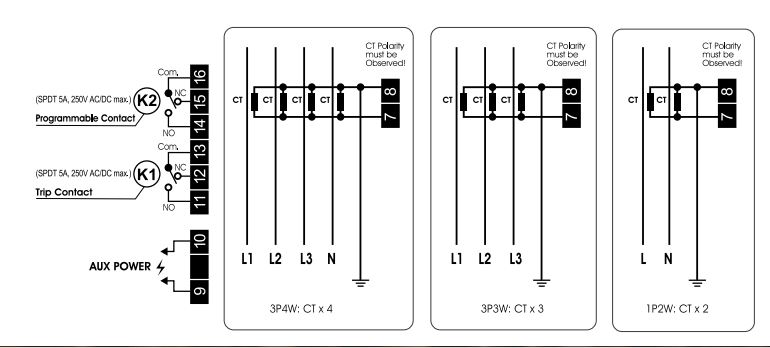

Wiring
