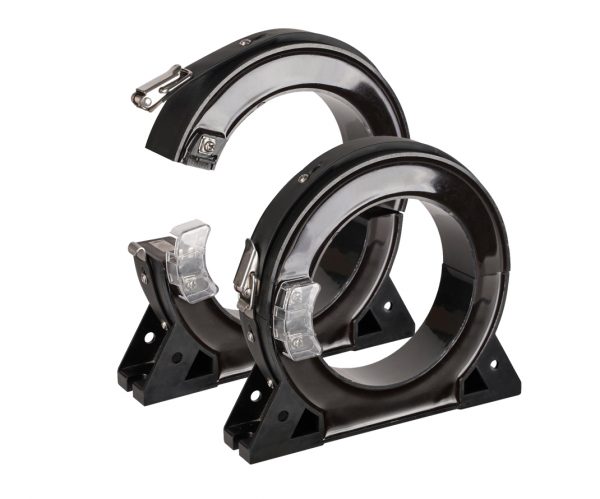

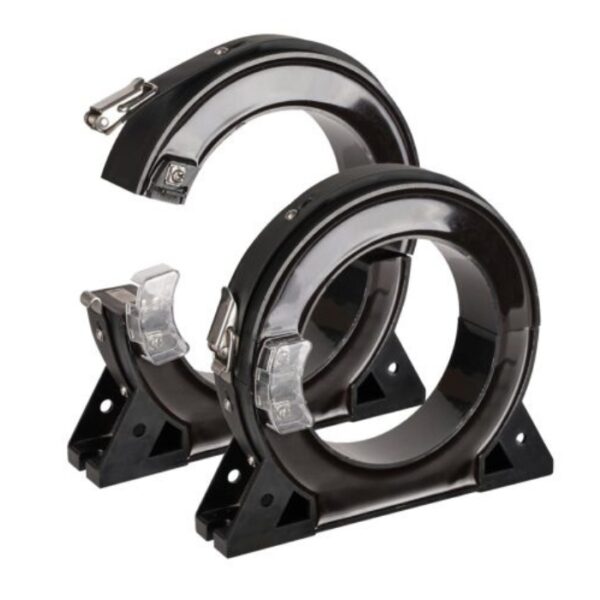

Split Core

Zero Phase Current Transformer


The advantages of using the split-core / clamp-on ZPC for adding Earth Leakage Relay Protection into the system, or replacement of existing ZPC for maintenance purposes:
– Dismantling of bus-bar not required
– Disconnection of cables not required
– Retrofitted without disrupting the live network
– Easy installation and time saving

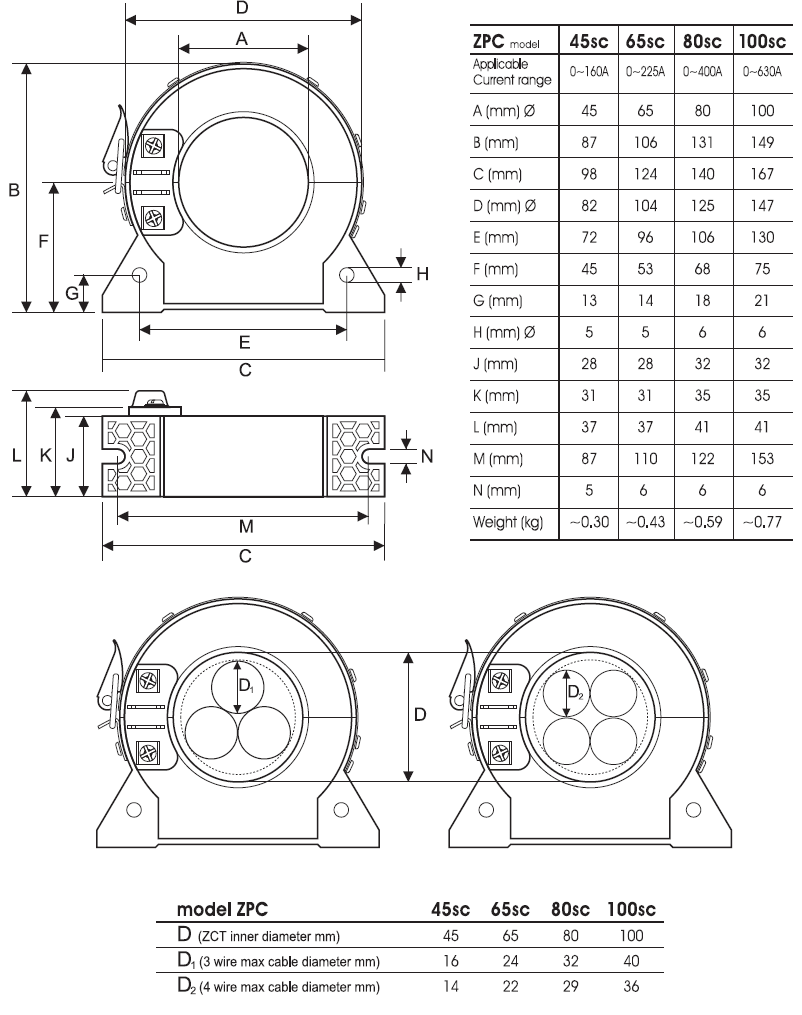

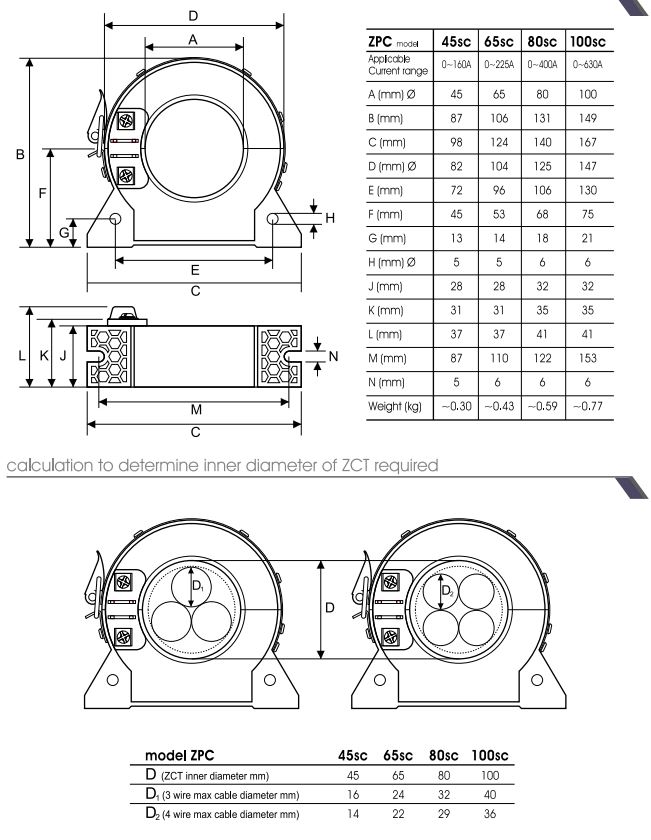

Tech Data
  • Type: Split-core/ clamp-on
  • Frequency: 50 / 60 Hz
  • Insulation: 600V / 50 Hz 1 min.
  • Sec. Burden: 10 VA
  • Connection: Terminal Block
