Products

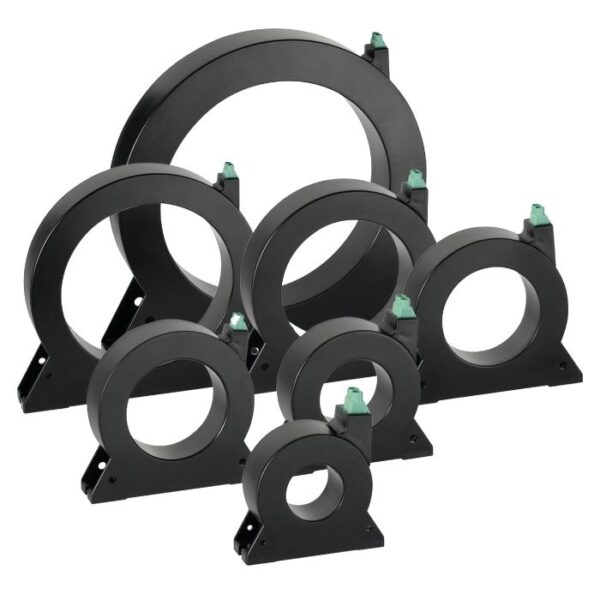

Solid-core

Zero Phase Current Transformer

Model Description
ZPC-30 Solid-core ZCT – 30mm (< 100Amp)
ZPC-45 Solid-core ZCT – 45mm (< 160Amp)
ZPC-65 Solid-core ZCT – 65mm (< 225Amp)
ZPC-80 Solid-core ZCT – 80mm (< 400Amp)
ZPC-100 Solid-core ZCT – 100mm (< 630Amp)
ZPC-150 Solid-core ZCT – 150mm (< 1250Amp)
ZPC-200 Solid-core ZCT – 200mm (< 1500Amp)
ZPC-300 Solid-core ZCT – 300mm (< 2000Amp)

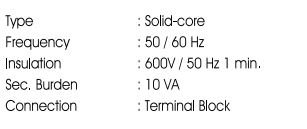

Tech Data
  • Type: Solid-core
  • Frequency: 50 / 60 Hz
  • Insulation: 600V / 50 Hz 1 min.
  • Sec. Burden: 10 VA
  • Connection: Terminal Block

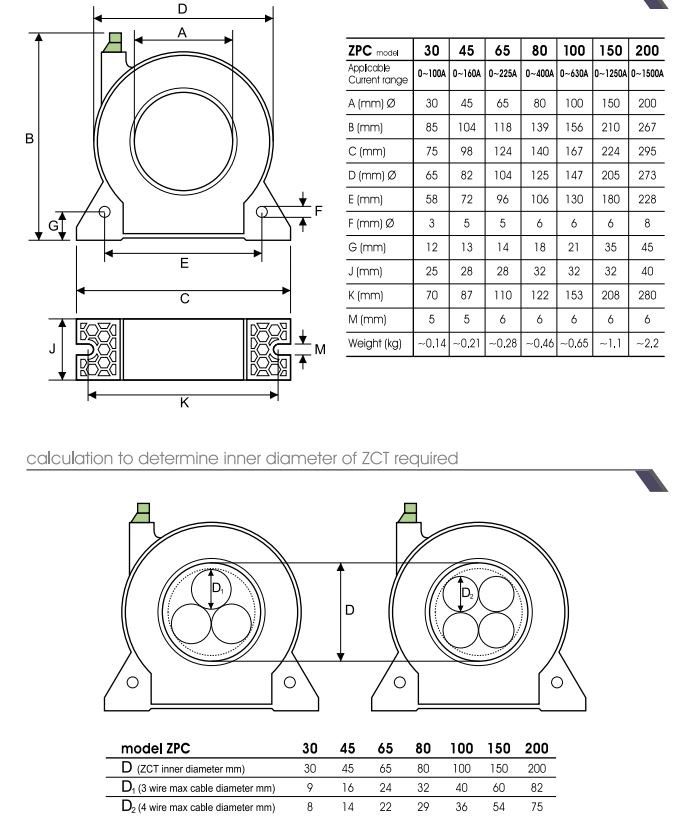

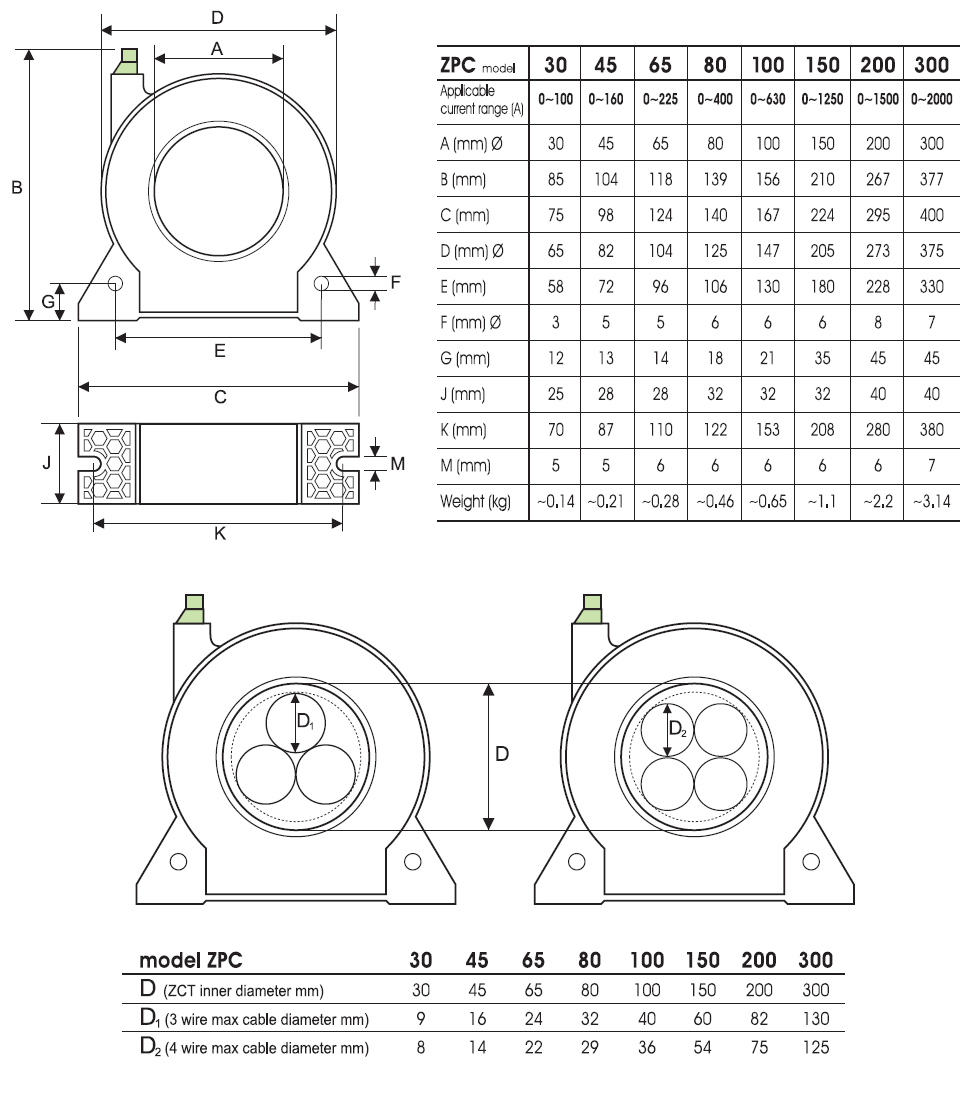

Dimension
