Products

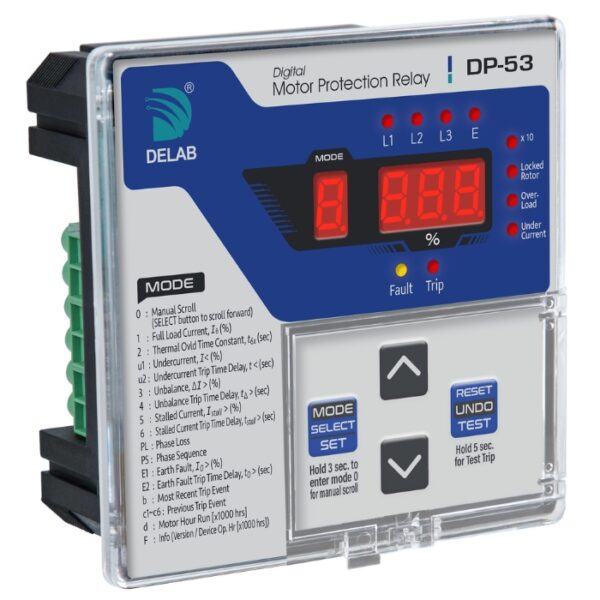

DP-53

Category :

Motor Protection Relay

Features
  • True RMS Measurement with SPARC and DCOI Algorithm
  • Auto/Manual Scroll for Real Time Display of Phase Current and Earth Fault in (%)
  • Thermal Overload Protection
  • Undercurrent Protection
  • Phase Loss Protection
  • Phase Sequence Protection
  • Stalled Current (Locked Rotor) Protection
  • Fault, Undercurrent, Overload, Phase Unbalance, Phase Loss, Phase Sequence, Locked Rotor, Earth Fault Indication
  • Trip Event Memory
    (non-volatile 7 previous records for 3 phases + earth)
  • Motor Hour Run (Accumulative)
  • Selectable Frequency (50 / 60 Hz)
  • Programmable Relay Output Contact for K2
  • Selectable Auto/ Manual Reset Function
  • Software Lock to Prevent Unauthorized Setting
  • Complies with:
  • IEC-60255-26/27 ; BS EN 50121 -5 Standards
  • ANSI Code: 37, 46, 49, 51P, 51G
  • External Plug-in Module for:
  • A-01s/ A-01sp (RS-485 MODBUS RTU) isolated type

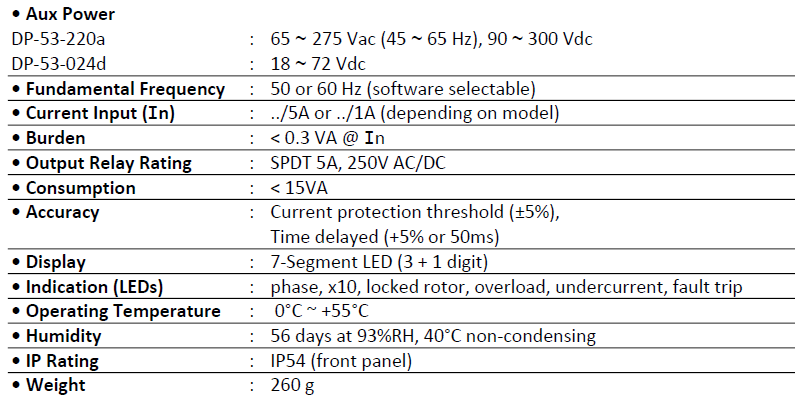

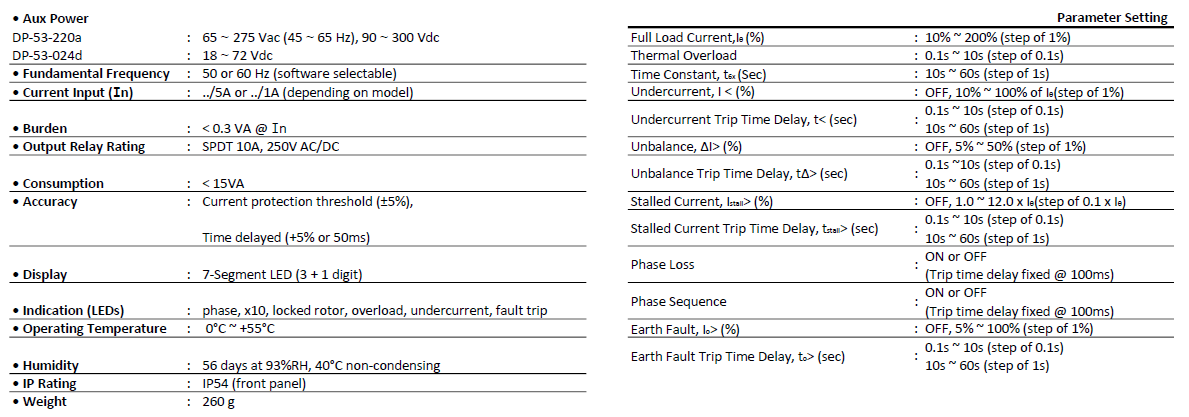

Tech Data

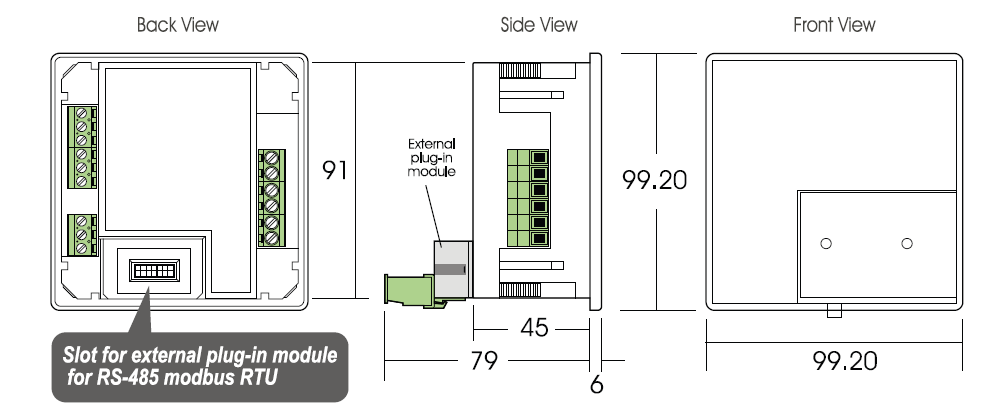

Dimension

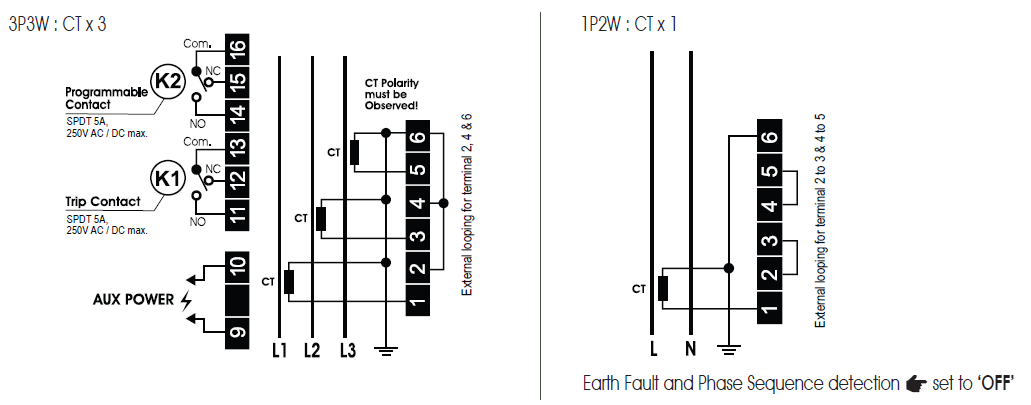

Wiring

PDFs Download
DELAB-Digital-Motor-Protection-Relay-DP-53-Catalog.pdf DELAB-Digital-Motor-Protection-Relay-DP-53-User-Guide.pdf Modbus-Reg-Map-DP-53-1.00.pdf DELAB-Digital-Motor-Protection-Relay-DP-53-Auto-Cad-File.dwg
Product Video
Product Video 1
