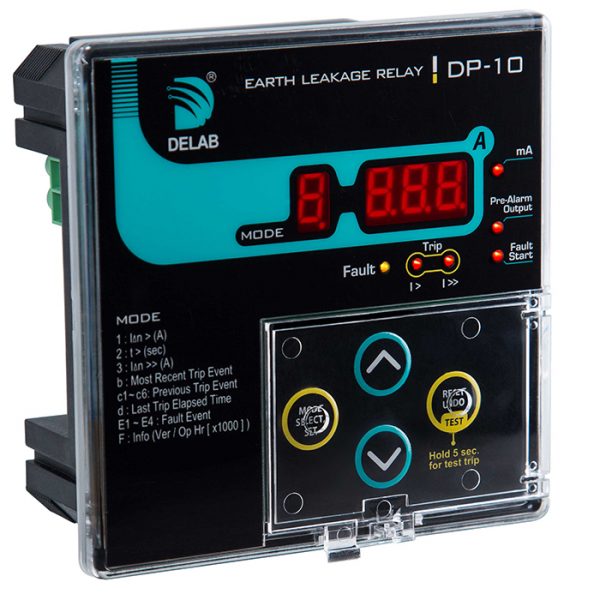

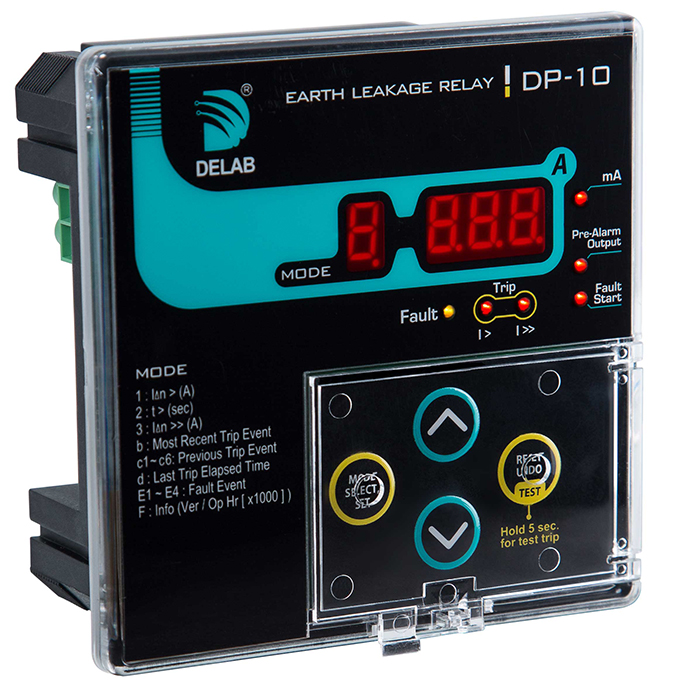

DP-10

Category : Digital Earth Leakage Relay

Earth Leakage Relay

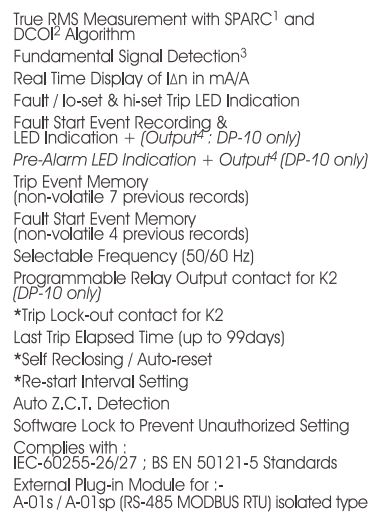

Features

True RMS Measurement with SPARC and DCOI Algorithm
Fundamental Signal Detection
Real Time Display of IΔN in mA/A
Fault / lo-set & hi-set Trip LED Indication
Fault Start Event Recording & LED Indication + Output
Pre-Alarm LED Indication + Output
Trip Event Memory
(non-volatile 7 previous records)
Fault Start Event Memory
(non-volatile 4 previous records)
Selectable Frequency (50/60 Hz)
Programmable Relay Output Contact for K2
Last Trip Elapsed Time (up to 99days)
Auto Z.C.T. Detection
Software Lock to Prevent Unauthorized Setting
Complies with: IEC-60255-26/27; BS EN 50121-5 Standards
External Plug-in Module for: A-01s / A-01sp
(RS-485 MODBUS RTU) isolated type

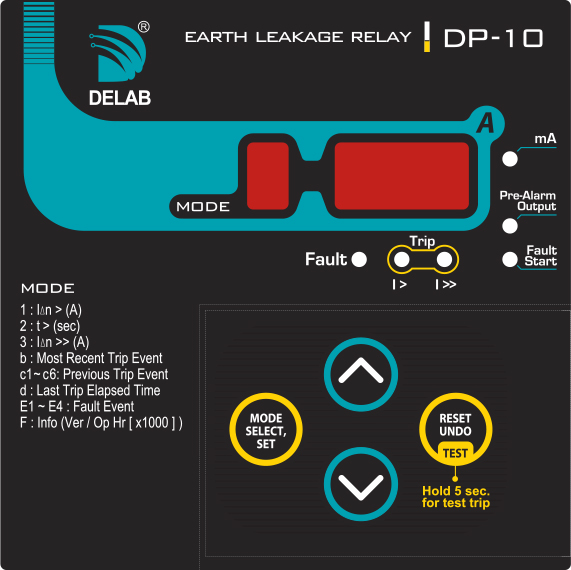

Front Panel

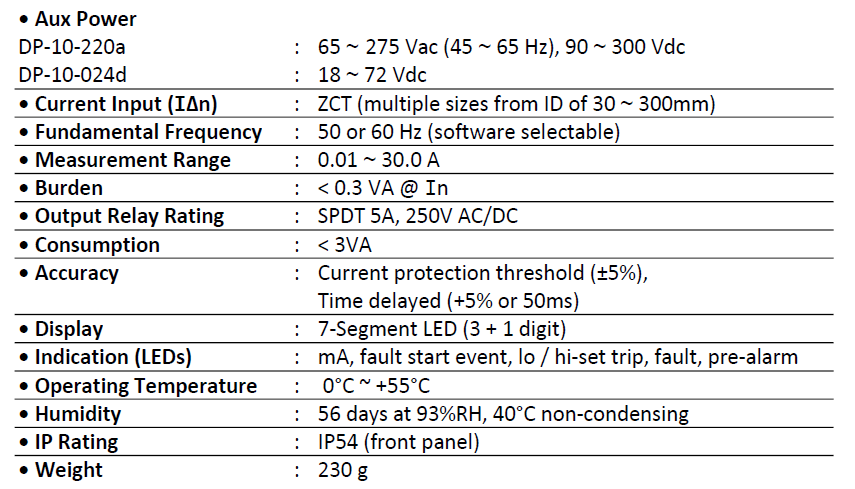

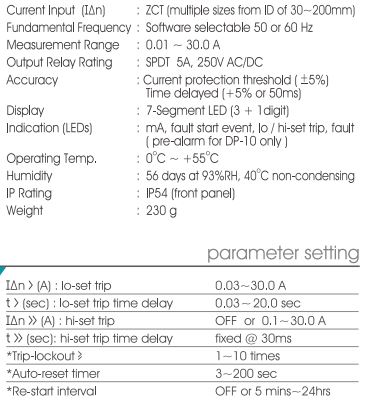

Tech Data

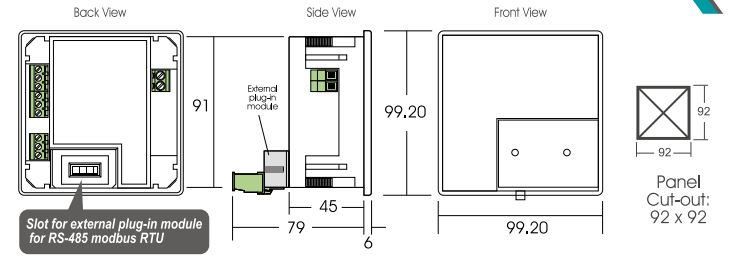

Dimension

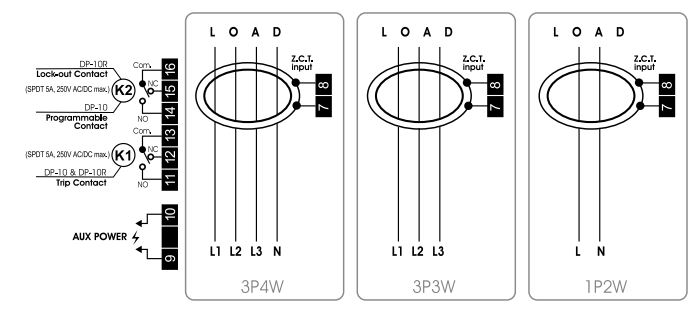

Wiring

Order Enquiry

PDFs Download

DELAB-Digital-Earth-Leakage-Relay-DP-10_10R-Catalog.pdf DELAB-Digital-Earth-Leakage-Relay-DP-10-User-Guide.pdf Modbus-Reg-Map-DP-10-1.01-1.pdf DELAB-Digital-Earth-Leakage-Relay-DP-10-Auto-Cad-File.dwg

Product Video

Product Video 1
