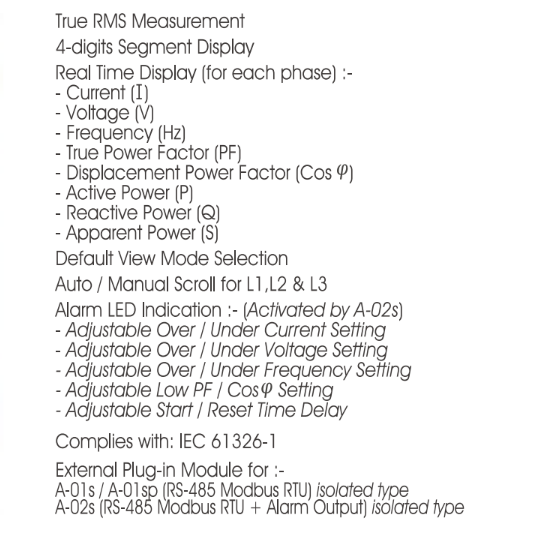

Real Time Display (for each phase): –
-Current (I)
-Voltage (V)
-Frequency (Hz)
-True Power Factor (PF)
-Displacement Power Factor (Cos φ)
-Active Power (P)
-Reactive Power (Q)
-Apparent Power (S)
Default View Mode Selection
Auto / Manual Scroll for L1, L2 & L3
Alarm LED Indication: – (Activated by A-02s)
-Adjustable Over / Under Current Setting
-Adjustable Over / Under Voltage Setting
-Adjustable Over / Under Frequency Setting
-Adjustable Low PF / Cos φ Setting
-Adjustable Start / Reset Time Delay
